OVERVIEW: Banner Admin Pages navigation basics


tip

OVERVIEW: Banner Admin Pages navigation

Target audience: McGill staff who use Banner Admin Pages (Banner 9).

Use this article to: learn the fundamentals of navigating Banner Admin Pages (Banner 9), including opening pages, searching and filtering records, using navigation tools, and understanding key differences from Banner 8 (INB). This article can be used as both a quick-start guide for new users and a reference for common tasks.

announcement

Restricted content

This article is intended for McGill staff with authorized access to Banner Admin Pages.

  • Do not share Banner navigation information, screenshots, or system data outside of McGill.
  • Any linked documents, attachments, or supporting materials should be restricted to the same authorized audience.
announcement

NOTICE: Use Banner data responsibly

Banner contains confidential personal and institutional information. When using Banner:

  • Follow McGill's security, privacy, and data-handling requirements.
  • Never share your Banner credentials with others.
  • Log out of Banner when you have finished your session.

Table of contents

  1. Quick start (3 common functions)
  2. Before you start
  3. Landing Page (left menu panel)
  4. Open a page (Applications vs Search)
  5. Inside a page (Key Section, Tools, Related)
  6. Lookups and filtering (Basic vs Advanced)
  7. Wildcard searching (Advanced filter)
  8. Keyboard shortcuts (most useful)
  9. Banner 8 (INB) vs Banner 9 (Admin Pages)
  10. Optional: QuickFlows
  11. Troubleshooting
  12. Page specific differences between INB Forms and Admin Pages
  13. Additional references

Quick start (3 common functions)

  1. To open a page: use Applications (browse) or Search (type keywords or the 7-character page ID).
  2. To “start working” on a page: fill the Key Section, then select Go. Use Start Over to reset.
  3. To find records: select the Filter (funnel) in the active section. Use Advanced Filter when you need operators or wildcards.
tip

Tip: Start with the basics

If you're new to Banner Admin Pages, begin with the Quick start and Landing Page sections. Once you're familiar with the basics, use this article as a reference and expand only the sections relevant to the task you're performing.

Before you start

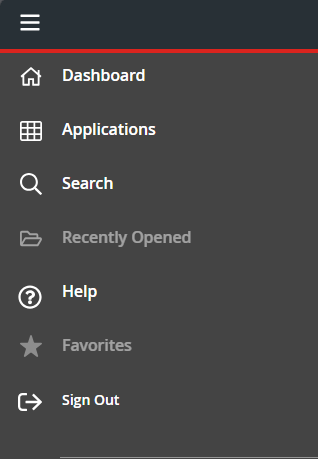

Landing Page (left menu panel)

Show/Hide: What each left-menu item does

The Landing Page (also called the Application Navigator) includes a “sticky” left menu panel that stays available while you work.

Menu panel itemWhat it does
MenuShows or hides the icon names.
DashboardReturns you to the Landing Page from anywhere in Banner.
ApplicationsOpens the application menus (for example: Banner, My Banner, Banner Self-Service) so you can select pages.
SearchFinds pages using keywords or the 7-character page ID. Results typically appear after entering a few characters.
Recently OpenedShows the pages you opened recently.
FavoritesCreates quick links to the pages you use most often.
HelpOpens Banner help and keyboard shortcuts (Help is usually active only when a page is open).
User ProfileShows the name of the user currently signed in.
Sign OutLogs you out of Banner.



Open a page (Applications vs Search)

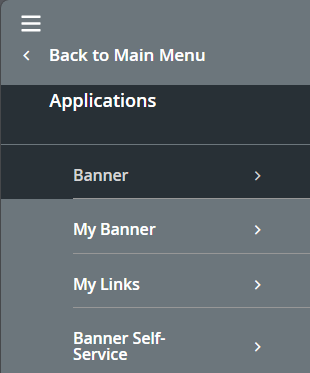

Show/Hide: Open a page using Applications
  1. Select Applications on the left menu panel.
  2. Browse the available menus and select the page you need.

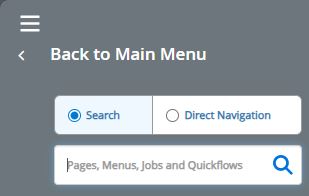

Show/Hide: Open a page using Search
  1. Select Search on the left menu panel.
  2. Type a keyword (example: person) or the 7-character page ID (if you know it).
  3. Select the correct result to open the page.

tip

Tip: one “live” copy per page

Banner 9 often re-uses the same page if it’s already open. If a page seems to “vanish”, open it again using Search or Recently Opened.

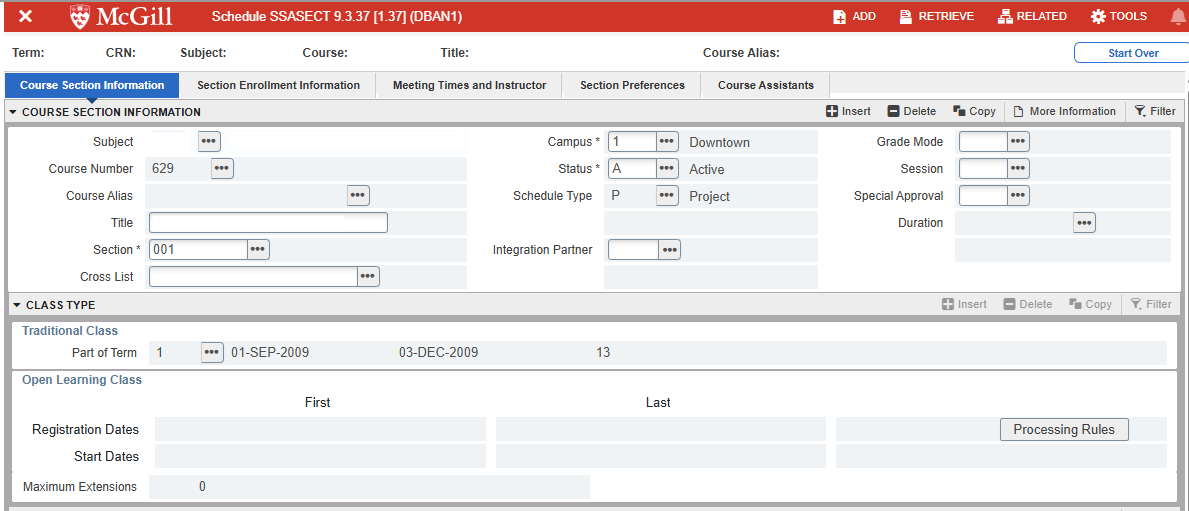

Inside a page (Key Section, Tools, Related)

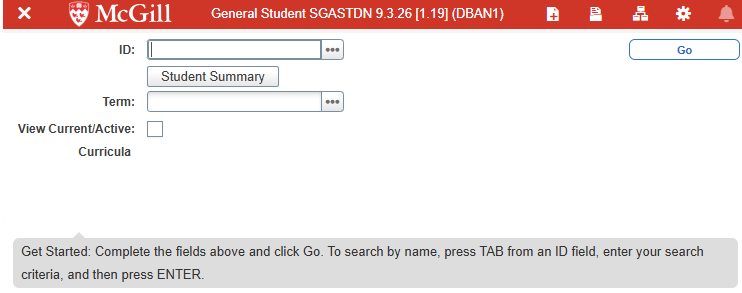

Show/Hide: Key Section (how to begin)

Many pages start with a Key Section at the top.

  1. Enter the required information in the Key Section.
  2. Select Go to load the rest of the page.
  • After you select Go, the Key Section often collapses and you will see Start Over instead.
  • Start Over clears the current context and lets you begin a new search/task on that page.
Show/Hide: Page header (Tools vs Related)

The page header usually includes:

  • Close (X): exits the page.
  • Related: opens a list of pages related to the one you’re using (opens another page).
  • Tools: actions for the current page (stays within the page, such as refresh/export/print depending on the page).
  • Add / Retrieve: options used with Banner Document Management (if enabled for your area).
Show/Hide: Tabs, sections, and footer navigation
  • Tabs group information by topic. Some tabs may be unavailable (greyed out) until you complete the Key Section.
  • Sections are the work areas inside a tab. When a section is active, you may see actions like Insert, Delete, Copy, and Filter.
  • The page footer often includes Next Section / Previous Section, Save, a record count, and sometimes a table/field name.

Lookups and filtering (Basic vs Advanced)

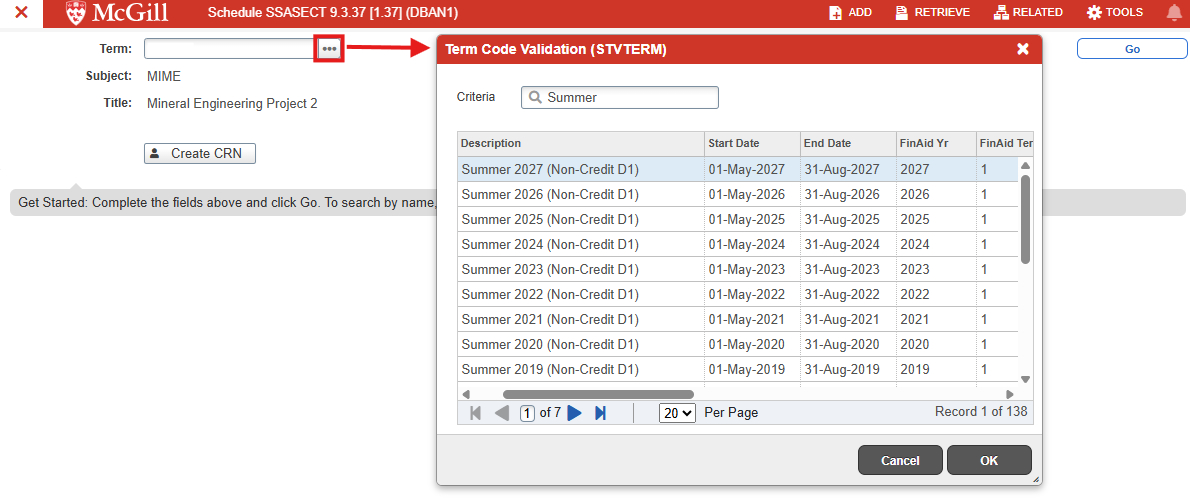

Show/Hide: Look up a value (List of Values)

Some fields include a lookup icon to help you find valid values (not all fields have it).

  1. Select the lookup icon in the field.
  2. In the list window, type in the Criteria field to narrow results, then press Enter.
  3. Select the correct value and choose OK (or double-click the value).

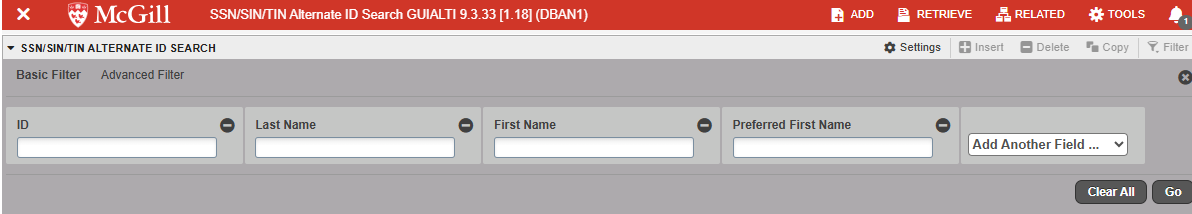

Show/Hide: Filter data in a section

Filtering is how you “query” data in Banner 9. The Filter (funnel) icon is context-sensitive: it is available only when the section is active.

Basic filter

  1. Enter values in one or more filter fields.
  2. Select Go to display results.
  3. If needed, use Filter Again to refine.

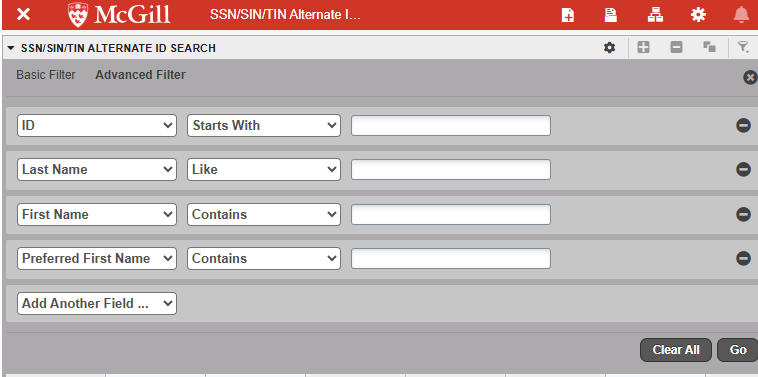

Advanced filter

  1. For each field, choose an operator (operators depend on the field type).
  2. Enter your filter value.
  3. Select Go.
  4. Use Filter Again to refine.

Quick cleanup: remove a field using the minus icon (if shown) or use Clear All where available.

Wildcard searching (Advanced filter)

Show/Hide: When to use wildcards

Use wildcards when you don’t know the exact spelling (for example, names with accents or multiple spellings). Wildcards are most reliable with the Advanced Filter and an operator like Like / Starts With / Ends With.

Show/Hide: Wildcard cheat sheet
WildcardMeaningExample
_ (underscore)Any single characterFl_r matches a 4-letter value where the 3rd character can vary
% (percent)Any number of charactersVill% matches values that start with Vill
Show/Hide: How to run a wildcard search (step-by-step)
  1. Open the section you want to search, then select the Filter (funnel) icon.
  2. Select the Advanced Filter tab.
  3. For the field you are searching, set the operator to Like, Starts With, or Ends With (not Equals).
  4. Type your value using a wildcard (example: Villau_ or Fl_r).
  5. Select Go.
announcement

Important: re-check the operator

If you switch between Basic Filter and Advanced Filter, Banner may change the operator back to Equals. When that happens, your wildcard will stop working.

Before you select Go: confirm the operator still says Like / Starts With / Ends With.

Tip: If you do a lot of wildcard searching, set your default filter to Advanced in your user preferences (if available in your Banner environment).

Keyboard shortcuts (most useful)

Show/Hide: Common shortcuts
ActionShortcut (Windows)
Applications menuCtrl + M
SearchCtrl + Shift + Y
Recently OpenedCtrl + Y
Dashboard / Landing PageCtrl + Shift + X
FavoritesCtrl + D
SaveF10
Refresh / rollbackF5

Note: See full list of Keyboard Shortcuts.

Banner 8 (INB) vs Banner 9 (Admin Pages)

Show/Hide: What changed (and what to do now)
AreaBanner INB (Banner 8)Banner Admin Pages (Banner 9)
Opening pagesOften used Direct Access (F5) or menus.Open pages using Applications or Search (no Direct Access).
Options menuOptions mixed in-page actions and links to other forms.Tools = actions on this page; Related = opens other pages.
Querying / filteringEnter Query / Execute Query cycle.Filter (funnel) replaces the query cycle (Basic and Advanced).
Navigation inside a formSections, scroll bars, Next/Previous block keys.Work is organized into Tabs and Sections; use Next/Previous Section in the footer.
MessagesOracle Forms pop-ups/status messages (often FRM codes).Messages appear in the notification area and are usually written in plainer language.

Optional: QuickFlows

Show/Hide: What QuickFlows are (and when to use them)

QuickFlows are saved “guided sequences” of pages that open in a specific order (useful for repeating multi-step tasks).

  • You can search for QuickFlows from the Landing Page Search field.
  • QuickFlows should contain pages of a single technology type (do not mix Banner 8 and Banner 9 pages in one QuickFlow).
Show/Hide: Create and populate a QuickFlow

Create a QuickFlow

  1. Open the QuickFlow Code Validation page.
  2. Select Insert to create a new record.
  3. Enter a code (name) and a description.
  4. Select Save.

Add pages to a QuickFlow

  1. Open the QuickFlow Definition page.
  2. Enter your QuickFlow code and select Go.
  3. Enter each page’s 7-character page ID in the order you want them to open.
  4. Select Save.

Troubleshooting

Show/Hide: Common issues and fixes
  • I can’t find the page I need: try searching by the 7-character page ID (if known) or use broader keywords.
  • The Filter (funnel) icon is greyed out: select inside the section first to activate it, then try again.
  • My wildcard search returns no results: confirm you are using Advanced Filter and the operator is Like / Starts With / Ends With (not Equals).
  • I changed something by mistake: if you have not saved, try Refresh/Rollback. If you need to restart the page context, use Start Over.
  • My keyboard shortcuts don’t work: some browser/system shortcuts can override Banner shortcuts. Use Help > Keyboard Shortcuts to confirm what your environment supports.
  • Banner Admin Pages Known Issues: Check this knowledge base article for some know issues.

Page differences between INB Forms and Admin Pages

Show/Hide:
Form/Page Name How it worked in INB How it works in Admin Pages

SLAEVNT

A new event could be created using the "Create" button

A new event is created using the Plus (+) button
SLAEVNT
The Event name would be entered in the "Description" Field
There are now two fields:
Event Title Header: The title of the event. Previously the "Description" field.
Description: A new free-text field to add context to the Event Title Header.
SLAEVNTThe Event Comments section would be segmented and display historical comments.The Events Comments field is not segmented. Only latest comment is copied over to Banner 9
SLAEVNTFunction Schedule Summary was editable in the event window.Function Schedule Summary section in the Event window is read-only. To edit the schedule, you must navigate to the Function Information tab. A Function type must be selected before the event schedule can be edited.
SSASECTN/AA new section is available: Add Authorization Registration Date. This section is not to be used.
SOAELTRAdding new lines to the table would automatically re-sequence the table.After adding a new line to the table, you must click the Re-Sequence and Save button to manually re-sequence the table.
SFIWDRLN/AA new field is available: Student Centric Period. This field allows you to select the period for which you wish to view withdrawal information. Available codes are listed on (Student Centric Period Term Control (SOASCPT) page
SHAGRDEN/A
A new field is available: Narrative Grade Comment. This check box is used to allow McGill to choose if the Grade must have a mandatory narrative grade comment. The check box is MEP enabled.
Note: The Narrative Grade Comment validation is applicable only for the final grades in Faculty Self-Service, and not on the SHATCKN and SFASLST pages.
SCASYLB
SFARHST
SHACRSE
SHATRNS
N/AA new field is available: Course Alias. This field will be blanked and not editable.
SOAHOLDN/AA new field is available: Hold Sequence Number. This field contains an auto-generated hold sequence number.
SOAHSCH
SOAPCOL
Nation or Province/State would display as a text description
There is an error that is currently being investigated
Nation or Province/State displays as a code. Until a fix is identified, you can use Admin Pages SOASBGI or STVNATN to look up the description associated with each code.
SOAPCOLThere was an unused field labelled SIS-HRThis field is now labelled Transfer Hours. It should not be used.
SPAPERSThere was a field labelled Gender
This field is now labelled Legal Sex. New values can be added to the list of Legal Sexes via the Legal Sex Code Validation (GTVLGSX) page.
Therre are also two new fields available:
Gender Designation: Gender identity of the person. This field should not be used.
Personal Pronoun: References data set in Minerva or during Admissions process.
SAADCRVN/AA new tab is available: Conditional Decisions. This tab should not be used.
SFAREGSN/AA new button is available: Section Detail. This button opens the query form SFQSECT.
SFAREGSN/AA new button is available: View Detailled Requests. This button should not be used.
SOAIDENThis INB form would be used for person search.This form no longer exists. Please use GUIALTI instead.
SHATCKNN/AA new field is available: Hide in Transcripts. If checked, selected courses will be hidden from a student's transcript.
SCASYLBN/AA new section is available: Course Plan. Information entered in this section can be viewed in further down in myCourses
SCADETLN/AA new tab is available: Grading. This tab should not be used.
STVRSTSN/AA new field is available: Action Description. This description allows users to differentiate between the registration status code description and the action description that is associated with the status code.
SOILCUR
The following fields were available:
Graduation Sequence
Start Date
End Date
These fields have been removed.
SGAASST
A selected PostDoc's fellowship summary would be displayed on Assistantship/Fellowship/Internship Summary (SGAASSTQ).
All post docs are displayed by default. To display a specific post doc's fellowship summary, you must filter by Recipient ID.





reference

ADDITIONAL REFERENCES:
